Canarm Explosion Proof Wall Fan

Canarm Explosion Proof AX Series  Wall  Fans

Air Volume 1450 CFM ~ 5520 CFM ( 41CMM ~ 156 CMM )

Static Pressure  0 ~ 0.25 inch WSP ( 0 ~ 6mm Aq )

The AX series exhaust fan

is a sturdily constructed, direct drive, horizontal discharge fan that is typically use for general

ventilation of factories, garages, warehouses and other industrial or commercial buildings.

The AX Explosion Proof Fans have a single speed, dual voltage explosion proof motor

that meets and conforms to all the standards that are listed below.

The AX series housings are constructed of heavy duty aluminum with built in shutters

that automatically open when the fan starts and gravity closes when the fan stops.

Some models now available with optional DC volt motor. Call for details.

CLASS I, GROUP C - Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.

CLASS I, GROUP D - Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol,

gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.

CLASS II GROUP F - Atmospheres containing carbonaceous dust, including carbon black, charcoal,

coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized

by other materials so that they present an explosion hazard.

CLASS II GROUP G - Atmospheres containing combustible dusts not included in group E or F, including

flour, grain, wood, plastic and chemicals.

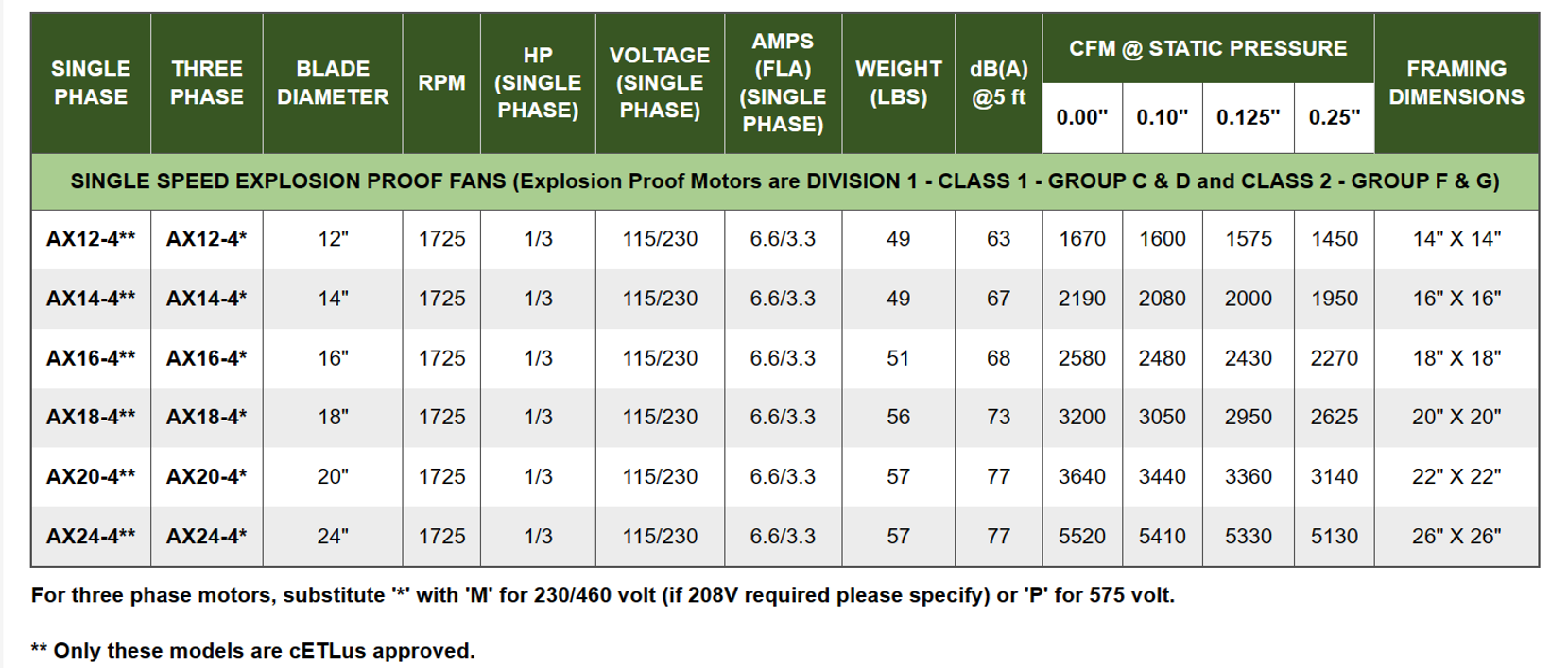

SPECIFICATIONS

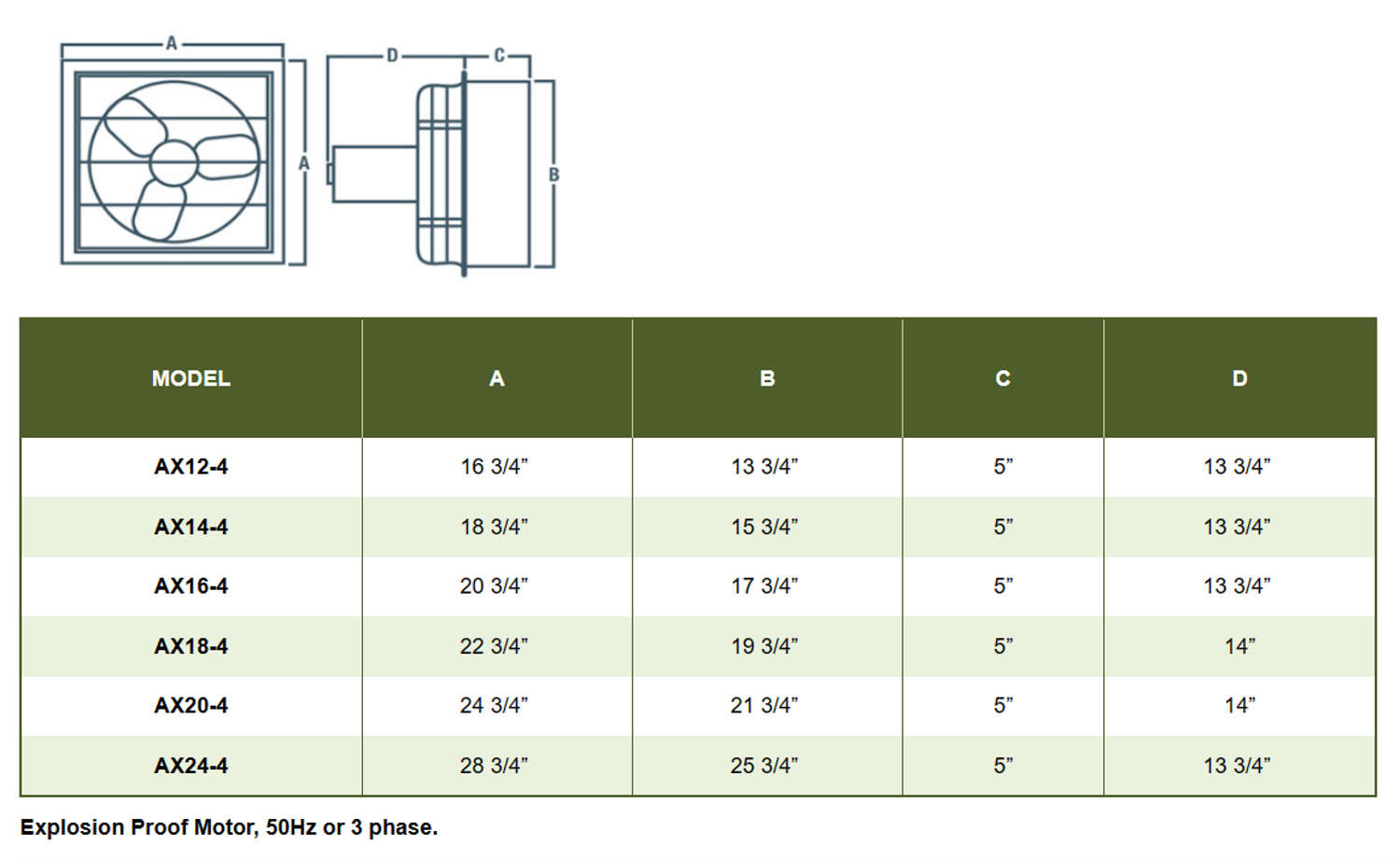

 DIMENSIONS
