Canarm Explosion Proof Wall Fan

Canarm Explosion Proof  P Series  Wall  Fans

Air Volume 1450 CFM ~ 5520 CFM ( 41CMM ~ 156 CMM )

Static Pressure  0 ~0.25 inch WSP ( 0 ~ 6mm Aq )

The P series exhaust fan

Sturdily constructed direct drive, horizontal discharge fan.

Durable powder coated finish. 12” - 24” models have heavy wire chrome plated OSHA

guards on intake side of fan. totally enclosed, ball bearing motor with thermal overload protection.

Designed for Industrial, Commercial & Farming applications.

The P series exhaust fan is a sturdily constructed, direct drive, horizontal discharge fan that is

typically used for industrial, commercial and farming applications. The P Explosion Proof Fans

have a single speed, dual voltage explosion proof motor hat meets and conforms to all the

standards that are listed below.

CLASS I, GROUP C - Atmospheres containing ethyl ether, ethylene, gases or vapors of

equivalent hazard. CLASS I, GROUP D - Atmospheres such as acetone, ammonia, benzene,

butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane,

or gasses or vapors of equivalent hazard.

CLASS II GROUP F - Atmospheres containing carbonaceous dust, including carbon black,

harcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts

that have been sensitized by other materials so that they present an explosion hazard.

CLASS II GROUP G - Atmospheres containing combustible dusts not included in group

E or F, including flour, grain, wood, plastic and chemicals.

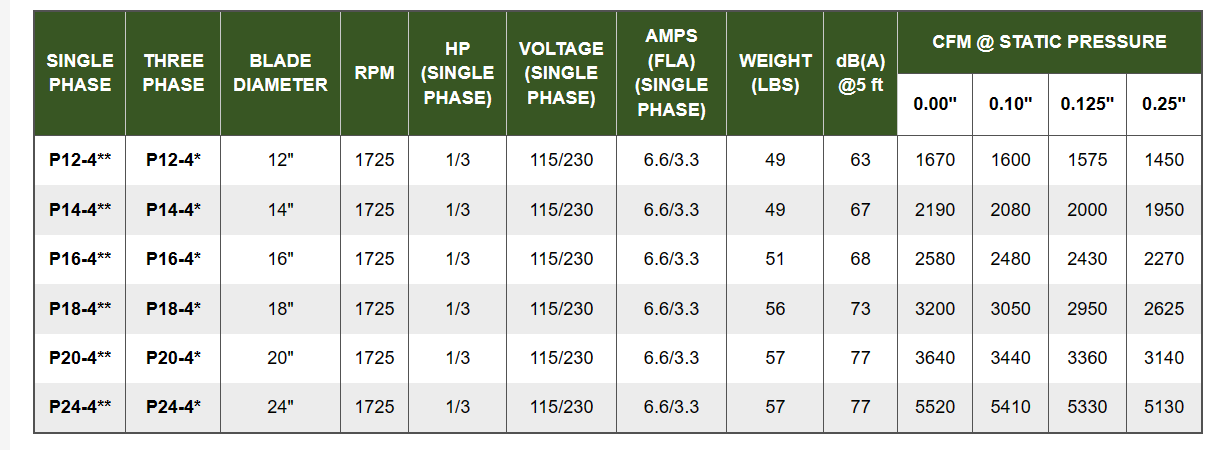

SPECIFICATIONS

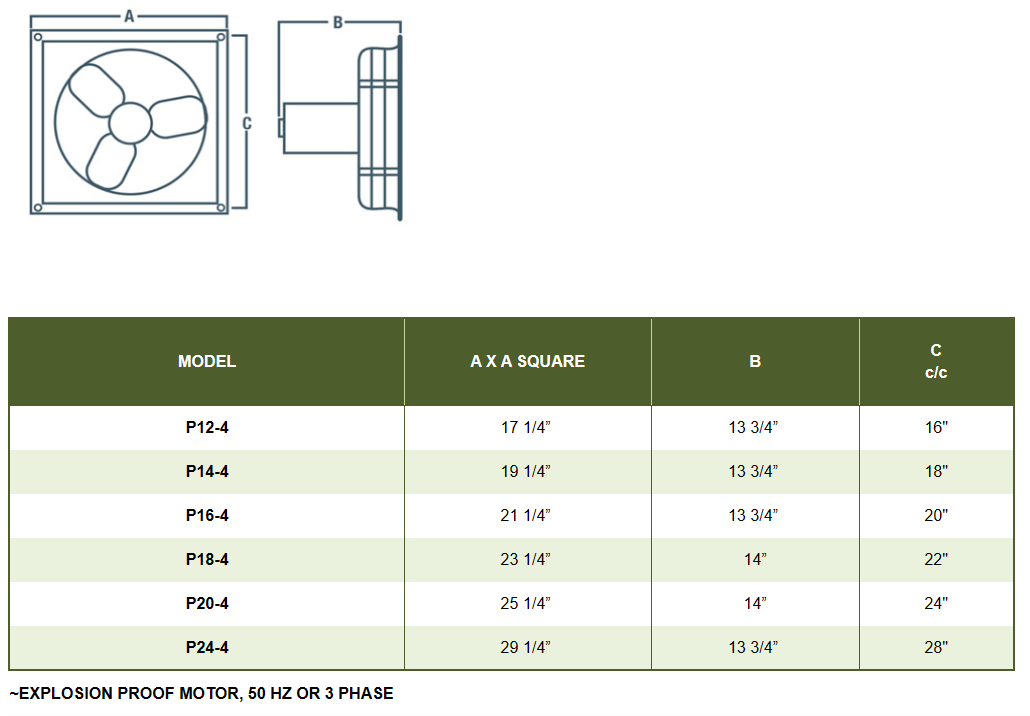

DImensions
